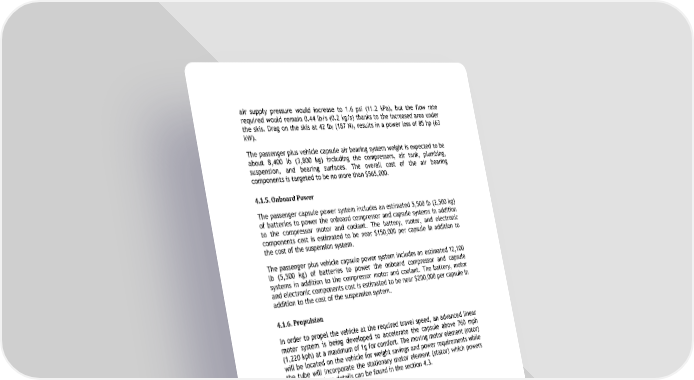

air supply pressure would increase to 1.6 psi (11.2 kPa), but the flow rate required would remain 0.44 lb/s (0.2 kg/s) thanks to the increased area under the skis. Drag on the skis at 42 lbf (187 N), results in a power loss of 85 hp (63 kW). The passenger plus vehicle capsule air bearing system weight is expected to be about 8,400 lb (3,800 kg) including the compressors, air tank, plumbing, suspension, and bearing surfaces. The overall cost of the air bearing components is targeted to be no more than $565,000. 4.1.5. Onboard Power The passenger capsule power system includes an estimated 5,500 lb (2,500 kg) of batteries to power the onboard compressor and capsule systems in addition to the compressor motor and coolant. The battery, motor, and electronic components cost is estimated to be near $150,000 per capsule in addition to the cost of the suspension system. The passenger plus vehicle capsule power system includes an estimated 12,100 lb (5,500 kg) of batteries to power the onboard compressor and capsule systems in addition to the compressor motor and coolant. The battery, motor and electronic components cost is estimated to be near $200,000 per capsule in addition to the cost of the suspension system. 4.1.6. Propulsion In order to propel the vehicle at the required travel speed, an advanced linear motor system is being developed to accelerate the capsule above 760 mph (1,220 kph) at a maximum of 1g for comfort. The moving motor element (rotor) will be located on the vehicle for weight savings and power requirements while the tube will incorporate the stationary motor element (stator) which powers the vehicle. More details can be found in the section 4.3. Hyperloop Passenger Capsule The overall propulsion system weight attached to the capsule is expected to be near 2,900 lb (1,300 kg) including the support and emergency braking system. The overall cost of the system is targeted to be no more than $125,000. This brings the total capsule weight near 33,000 lb (15,000 kg) including passenger and luggage weight. Hyperloop Passenger Plus Vehicle Capsule The overall propulsion system weight attached to the capsule is expected to be near 3,500 lb (1,600 kg) including the support and emergency braking system. The overall cost of the system is targeted to be no more than $150,000. This
